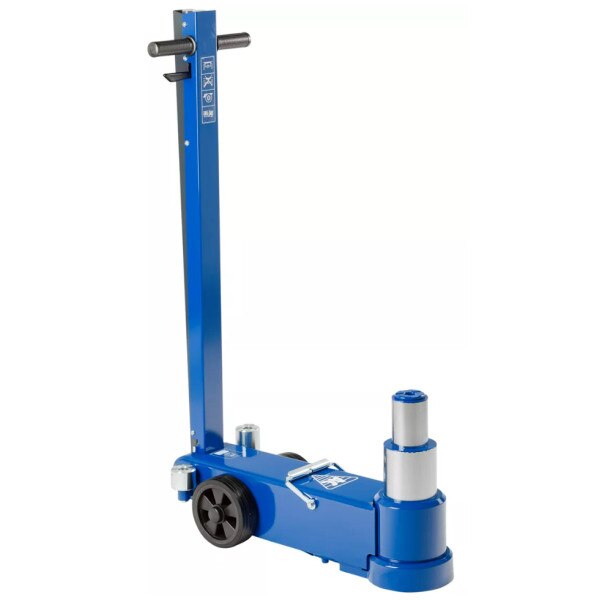

AC Hydraulic - Air Hydraulic Jack 25/50T 2 stage
Details
2 STAGE AIR HYDRAULIC JACK FOR HEAVY DUTY VEHICLES, I.E. BUSES AND TRUCKS
- Minimum height of 220 mm
- Designed for heavy-duty, intensive commercial use
- Hard chromium plated rams for long life
- Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
- Ergonomic handle with push buttons
- Extend the maximum lifting height with an additional 50 or 100 mm extensions
Specifications:
- Capacity 50 t
- Capacity / Height steps;
- 50 t / 340 mm
- 25 t / 450 mm
- Min height 220 mm
- Max height 450 mm
- Frame length 810 mm
- Handle length 1160 mm
- Width 200 mm
- Width with wheels 315 mm
- Air supply 8 - 10 bar
- Air consumption 350 - l/min
- Weight 80 kg
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
