AC Hydraulic - Air Hydraulic Jack 10/25T 2 stage Portable
Details

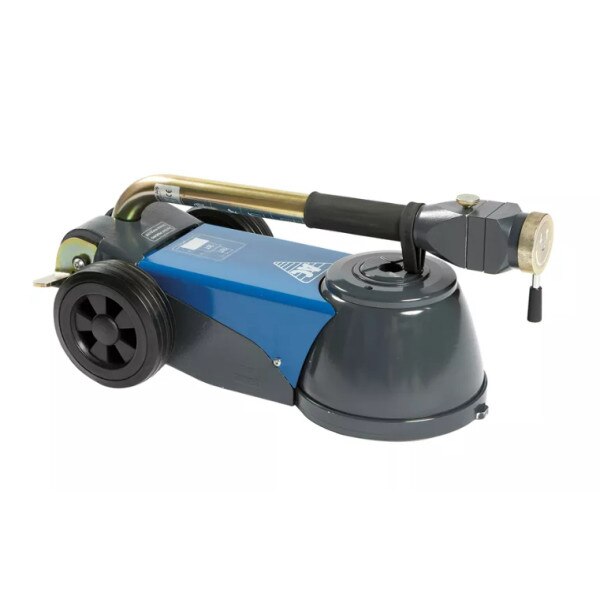

PORTABLE AIR HYDRAULIC JACK IDEAL FOR SERVICE VANS ETC.
- Low minimum height of only 160 mm and low weight of only 28 kg
- Extend lifting height with 2 extensions (50-100 mm)
- Handy design with no loose tubes, handles or valves
- Hard chromium plated piston rod for long life

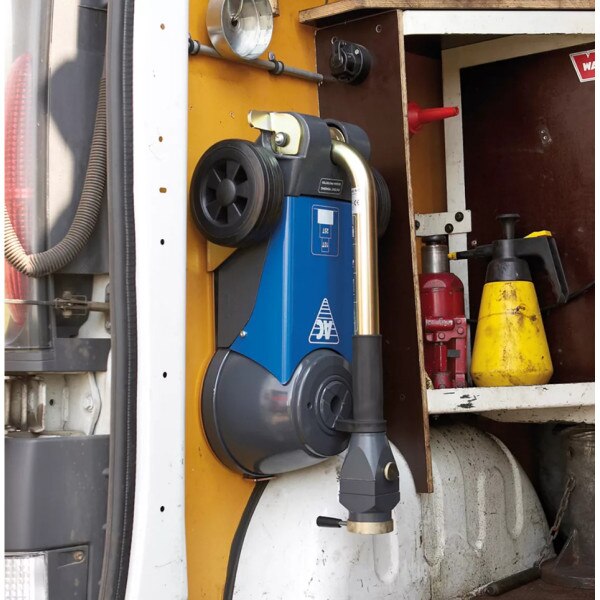

- Transport locking device / wall bracket for both van and workshop (Option)
- Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
- A portable design and weight of just 28 kg
- Single handle for both carrying, lifting, lowering and maneuvering
Specifications:
- Capacity 25 t
- Capacity / Height steps;
- 25 t / 235 mm
- 10 t / 320 mm
- Min height 160 mm
- Max height 320 mm
- Frame length 535 mm
- Handle length 550 mm
- Width 225 mm
- Width with wheels 290 mm
- Air supply 8 - 10 bar
- Air consumption 350 - l/min
- Weight 28 kg
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
Watch this video to learn how to troubleshoot your hydraulic transmission jack
Watch this video to learn how to repair your hydraulic transmission jack
